INFLATABLE SILICONE SEAL PROFILES

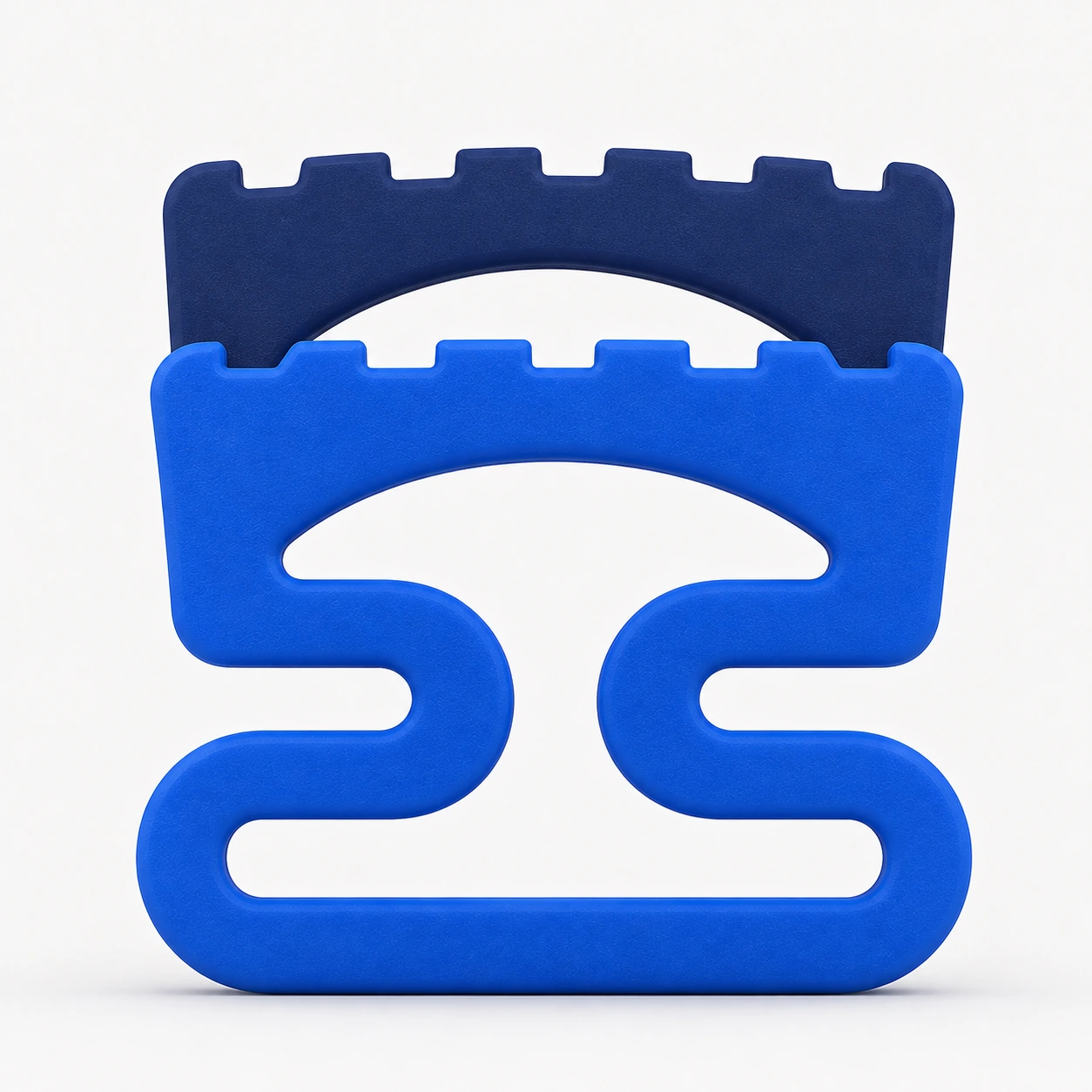

Custom Section Inflatable Seals
The custom-section family brings together inflatable silicone profiles with different cross-section geometries. Use the drawings as a starting point when a standard mounting arrangement does not describe your gasket requirement.
SECTION & MOUNTING
Start with the sealing requirement and your drawing
A custom requirement can involve the cross-section, overall seal dimensions, mounting arrangement or air connection. These are separate decisions: an existing catalogue section may still be suitable for a seal made to your required overall shape and length.
First identify the surface that must be sealed and the direction in which the profile should expand. Then show the mounting space, contact gap, bends and corners. This helps distinguish a different installation of an existing section from a requirement for a new section geometry.
Send your technical drawing together with temperature, pressure, media exposure, operating cycle and quantity. Include any material or documentation requirements at the enquiry stage. Manufacturing feasibility and the final specification are confirmed after reviewing the project.
TECHNICAL DRAWINGS
Custom Section profile dimensions
Compare the 37 catalogue profiles below. Dimensions are in millimetres; pressure values are in bar. Open the PDF for the complete section and drawing notes.
| Profile code | Width (mm) | Height (mm) | Inflated height (mm) | Recommended pressure (bar) | Technical drawing |
|---|---|---|---|---|---|
| 1742 | 56 | 25 | 34 | 1.38 | View PDF Download |
| 2357 | 50.5 | 25.31 | 38 | 1.03 | View PDF Download |
| 2688 | 70 | 38 | 50 | 1.72 | View PDF Download |
| 3104 | 40 | 28 | 34 | 1.38 | View PDF Download |
| 3237 | 48 | 10.5 | 15 | 1.03 | View PDF Download |
| 4005 | 16.5 | 21.5 | 24 | 0.69 | View PDF Download |
| 4528 | 30 | 36 | 36 | 0.97 | View PDF Download |
| 4549 | 12 | 16.8 | 17 | 0.69 | View PDF Download |
| 4654 | 15 | 14.5 | 17 | 1.03 | View PDF Download |
| 4811 | 18 | 16 | 17 | 0.97 | View PDF Download |
| 5105 | 13.1 | 15.8 | 17 | 0.83 | View PDF Download |
| 5145 | 13 | 14 | 16 | 1.03 | View PDF Download |
| 5208 | 22 | 22 | 22 | 1.1 | View PDF Download |
| 5394 | 35 | 34.7 | 37 | 1.38 | View PDF Download |
| 5405 | 16 | 16 | 18 | 0.83 | View PDF Download |
| 5423 | 30 | 12.5 | 16 | 0.69 | View PDF Download |
| 6044 | 32.8 | 28 | 37 | 0.69 | View PDF Download |
| 6234 | 16 | 15.5 | 17 | 0.69 | View PDF Download |
| 6682 | 17.3 | 14.5 | 17 | 0.55 | View PDF Download |
| 6683 | 16 | 20 | 23.5 | 0.69 | View PDF Download |
| 6799 | 16 | 22 | 25 | 0.97 | View PDF Download |
| 7330 | 16 | 12 | 15 | 0.83 | View PDF Download |
| 7664 | 15 | 14 | 15 | 0.97 | View PDF Download |
| 8009 | 17.5 | 16 | 19 | 1.24 | View PDF Download |
| 8011 | 26 | 10.3 | 36 | 1.03 | View PDF Download |
| 8107 | 16.6 | 24.2 | 12 | 1.03 | View PDF Download |
| 8396 | 38.1 | 12.7 | 30.5 | 0.69 | View PDF Download |
| 8451 | 60 | 42.5 | 73 | 0.69 | View PDF Download |
| 8463 | 35 | 35 | 57 | 0.83 | View PDF Download |
| 8551 | 47 | 27 | 27.5 | 1.03 | View PDF Download |
| 8627 | 42 | 28 | 48 | 1.03 | View PDF Download |
| 8957 | 34.5 | 35 | 37 | 0.69 | View PDF Download |
| 9421 | 37 | 12.5 | 34 | 0.69 | View PDF Download |
| 9609 | 12.2 | 12.4 | 15.7 | 0.69 | View PDF Download |
| 9689 | 80 | 20 | 81 | 0.69 | View PDF Download |
| 9837 | 20.5 | 16.5 | 31 | 1.03 | View PDF Download |
| 9845 | 14.5 | 14.8 | 21 | 0.69 | View PDF Download |
Catalogue values support profile comparison. Confirm the material, operating pressure, mounting arrangement and application suitability with our team before specifying a seal.
YOUR GASKET REQUIREMENT
Send the drawing. Define the seal.
Include the profile code or cross-section, overall seal dimensions, mounting details, contact gap, valve position, operating conditions and quantity. Tell us the delivery country when requesting a quotation.
