INFLATABLE SILICONE SEAL PROFILES

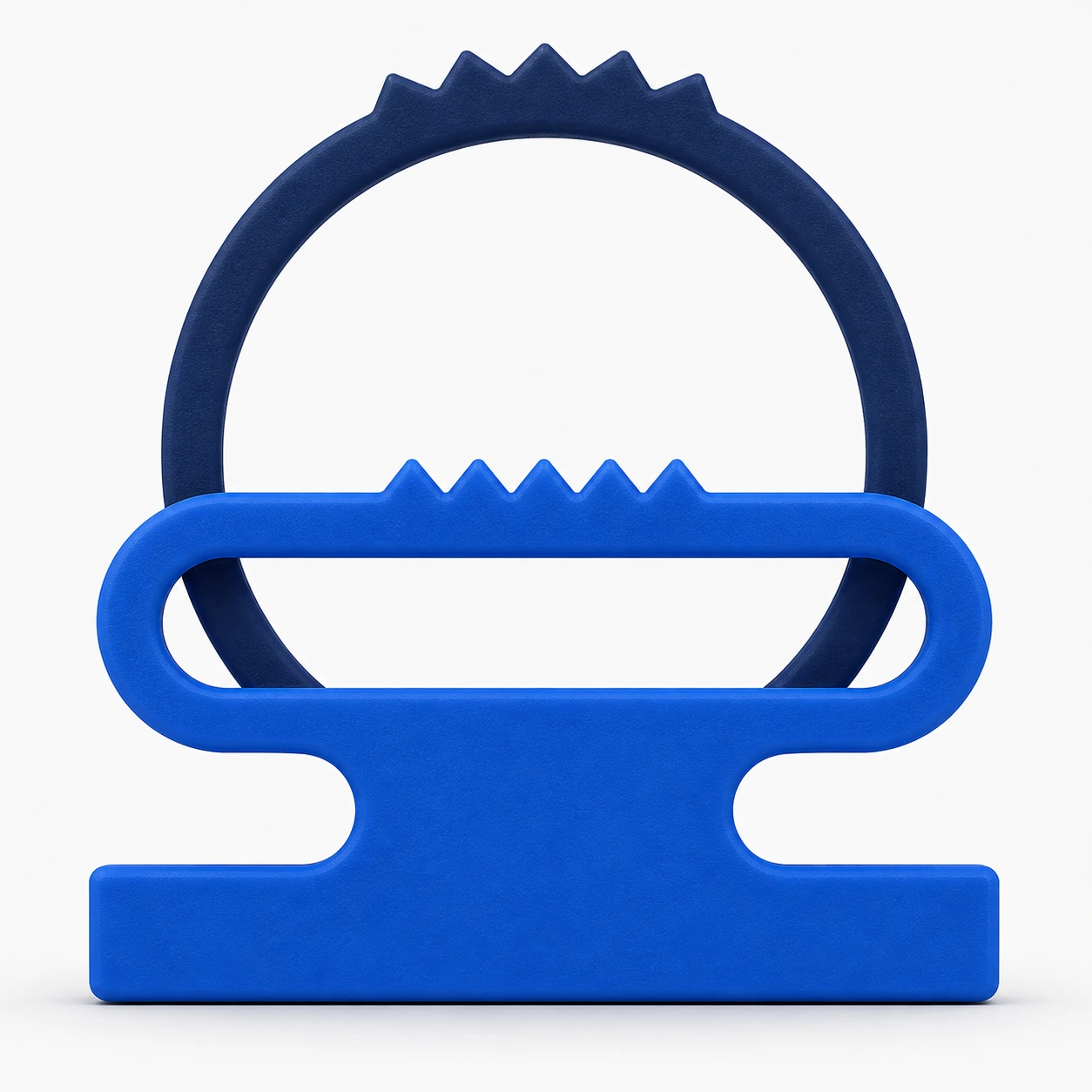

Stem Foot Inflatable Seals
Stem-foot inflatable seals combine an inflatable section with a distinct stem or foot in the profile. Compare the retaining part of the section and the sealing part separately, then review how both fit into the complete mounting arrangement.
SECTION & MOUNTING
Review the foot, stem and inflatable body together
The overall width and height give an initial comparison, but the foot and stem dimensions are also needed to assess the fit. Open the profile drawing to inspect the details that cannot be represented by a single outside measurement.
Check the support around the foot and the position of the inflatable body relative to the mating surface. The mounting arrangement should hold the section in the intended position while leaving room for inflation and deflation. Include any nearby edges or restrictions in the assembly drawing.
A replacement enquiry is easier to assess when the drawing shows both the gasket and the receiving section. Add the complete seal shape, required quantity and valve location. If the listed profiles do not match the arrangement, share the required cross-section for a technical review.
TECHNICAL DRAWINGS
Stem Foot profile dimensions
Compare the 18 catalogue profiles below. Dimensions are in millimetres; pressure values are in bar. Open the PDF for the complete section and drawing notes.
| Profile code | Width (mm) | Height (mm) | Inflated height (mm) | Recommended pressure (bar) | Technical drawing |
|---|---|---|---|---|---|
| 1092 | 30 | 17.5 | 28 | 1.03 | View PDF Download |
| 2969 | 14.5 | 10.1 | 16 | 0.69 | View PDF Download |
| 3069 | 49.2 | 21 | 49 | 1.03 | View PDF Download |
| 4418 | 51.4 | 23 | 42 | 1.38 | View PDF Download |
| 4565 | 76.5 | 30.3 | 63 | 0.69 | View PDF Download |
| 4739 | 30.3 | 18.8 | 28 | 0.69 | View PDF Download |
| 4822 | 30.3 | 19.3 | 27 | 0.69 | View PDF Download |
| 5485 | 52.8 | 20.2 | 42 | 1.38 | View PDF Download |
| 6154 | 31.8 | 15.9 | 26 | 0.55 | View PDF Download |
| 6226 | 30 | 17.5 | 29 | 0.69 | View PDF Download |
| 6370 | 60 | 40 | 48 | 1.38 | View PDF Download |
| 6989 | 25.4 | 12.5 | 16 | 1.03 | View PDF Download |
| 8733 | 54 | 34.5 | 50 | 1.24 | View PDF Download |
| 8953 | 60.4 | 36.5 | 57 | 1.03 | View PDF Download |
| 9051 | 40 | 27 | 35.5 | 1.03 | View PDF Download |
| 9080 | 50.8 | 22.2 | 39 | 1.03 | View PDF Download |
| 9089 | 30.8 | 16 | 26.5 | 1.03 | View PDF Download |
| 9551 | 30 | 20.75 | 30 | 1.03 | View PDF Download |
Catalogue values support profile comparison. Confirm the material, operating pressure, mounting arrangement and application suitability with our team before specifying a seal.
YOUR GASKET REQUIREMENT
Send the drawing. Define the seal.
Include the profile code or cross-section, overall seal dimensions, mounting details, contact gap, valve position, operating conditions and quantity. Tell us the delivery country when requesting a quotation.
PROFILE SELECTION
Compare other profile families
Read the section guide and compare the technical drawings for each family.
