INFLATABLE SILICONE SEAL PROFILES

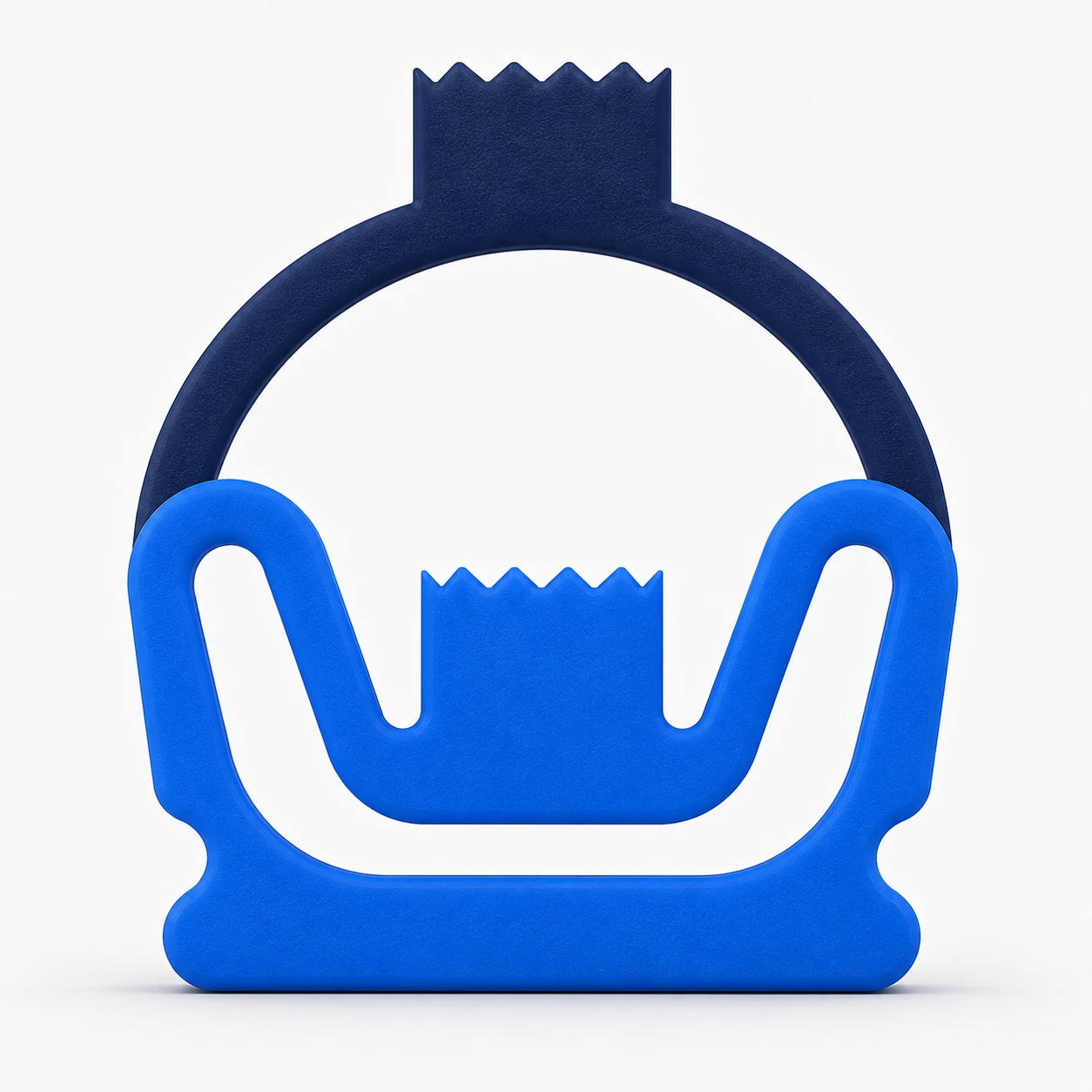

Snap-in Base Inflatable Seals
Snap-in base inflatable seals have retaining features in the base of the cross-section. This family helps you compare the part of the profile that holds the seal in place as well as the part that expands against the mating surface.
SECTION & MOUNTING
Check the retaining base before selecting the section
For this family, the relationship between the base and the receiving channel is central to selection. Check the entry opening, retaining shoulders and available depth in the technical drawing. The name of the family does not establish compatibility with an existing channel.
The base must be supported without obstructing the inflatable chamber. Review how the profile will be inserted, how it will be kept in position during inflation and how it can be removed for maintenance. These questions are particularly useful when the surrounding equipment restricts access.
Send a section of the receiving channel along with the seal drawing or sample photograph. Mark the contact surface, operating gap and air connection position. We can use this information to discuss a suitable catalogue profile or a project-specific requirement.
TECHNICAL DRAWINGS
Snap-in Base profile dimensions
Compare the 8 catalogue profiles below. Dimensions are in millimetres; pressure values are in bar. Open the PDF for the complete section and drawing notes.
| Profile code | Width (mm) | Height (mm) | Inflated height (mm) | Recommended pressure (bar) | Technical drawing |
|---|---|---|---|---|---|
| 1091 | 25 | 15 | 34 | 1.03 | View PDF Download |
| 5974 | 19.8 | 13 | 17 | 0.69 | View PDF Download |
| 7488 | 23.4 | 12.9 | 14 | 0.83 | View PDF Download |
| 7827 | 25.3 | 15.8 | 35 | 1.03 | View PDF Download |
| 8106 | 18.2 | 13.4 | 23.5 | 1.03 | View PDF Download |
| 8309 | 23.3 | 16.8 | 26 | 1.03 | View PDF Download |
| 9583 | 24.5 | 14 | 27 | 1.03 | View PDF Download |
| 9664 | 45.5 | 28.5 | 58 | 0.83 | View PDF Download |
Catalogue values support profile comparison. Confirm the material, operating pressure, mounting arrangement and application suitability with our team before specifying a seal.
YOUR GASKET REQUIREMENT
Send the drawing. Define the seal.
Include the profile code or cross-section, overall seal dimensions, mounting details, contact gap, valve position, operating conditions and quantity. Tell us the delivery country when requesting a quotation.
